Universal Archway

$4,999.99

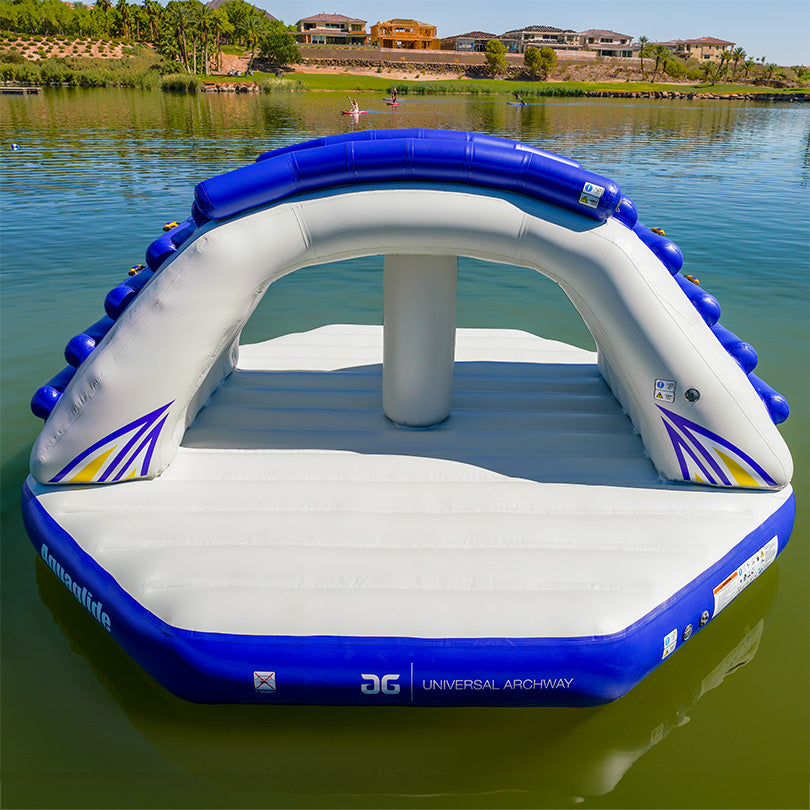

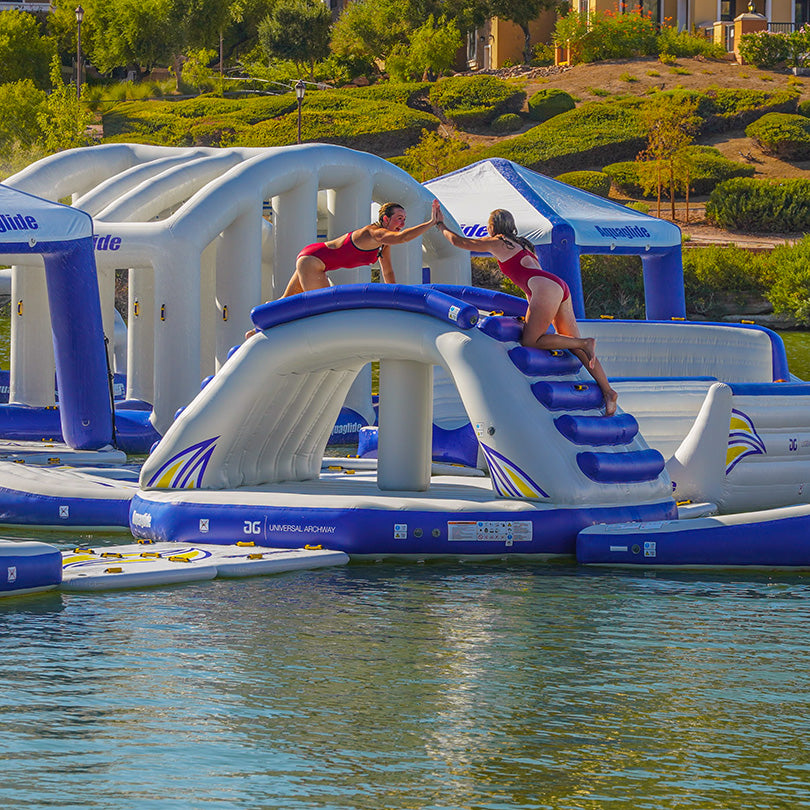

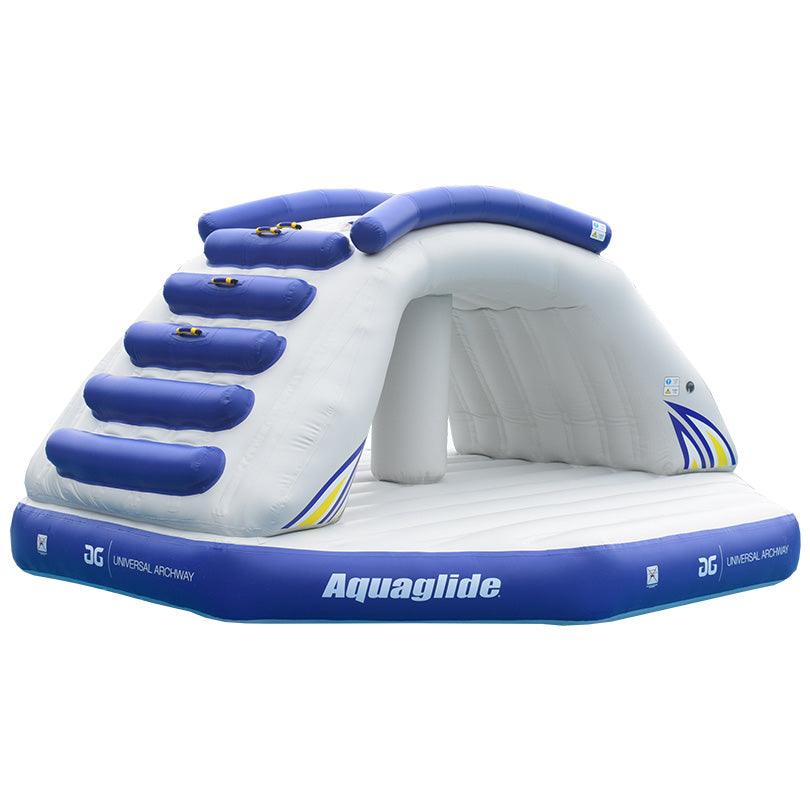

Whether it’s the high or low road, the Universal Archway is where paths diverge. Featuring an intermediate climbing arch above and a tunnel below, this feature adds excitement, diversity, and play value for up to six users at once. Designed to fit any Aquaglide Aquapark Series, the Universal Archway can be connected to other park features on all eight sides.

Click button below for more product info

Features

Best For

Climbing and transferring to other features.

Capacity

6 Adults / 6 Children

Warranty

3-year limited against any manufacturing defects.

Dimensions

12’8” L (385 cm) x 12’8” W (385 cm) x 8’3” H (251 cm)

Min Water Depth

10’ (3.0 m)

Includes

Universal Archway and repair kit.

Not Included

Boarding platform, anchor weights, mooring lines, bridles, Vario-Lock™ straps, inflation pump.

More Specs

Key Tech Features

  • Double I-Beam – Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
  • Tubular – Welded structural tube construction with 3-layer seams.
  • Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance.
  • Interlock 5 – 8 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
  • Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.
  • PRV – Pressure relief valve to help protect against catastrophic over-inflation.

Key User Activities

  • Climb – Integrated two-way ladder walls provide challenge and excitement over the archway.
  • Shade – Convenient shaded rest and play area offers an alternate route beneath the archway.
  • Multi-level – Diverse multi-level play area accommodates more users.
  • Obstacle – Presents an obstacle challenge which adds to the fun.
  • Hub – Serves a central hub connection for numerous pathways.

Technical Specifications

  • Max Weight – 1,200 lb. (544 kg) max weight.
  • Material – 0.90 mm / 31 oz Cx3.
  • Minimum Distance from Shore – 10’ (3.0 m)
  • Minimum Required Total Anchor Weight – 4,400 lb. (2,000 kg)
  • Anchor Rings – 4, or 1 with 2-way bridle.
  • Accessory Attachment D-rings – 5 each on all 8 sides.

Product Notes

  • Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
  • If utilizing as a standalone piece, this item requires a boarding platform (not included) such as Swimstep XLSwimstep 5×5Speedway 10Speedway 20, or Splashmat.
  • The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
