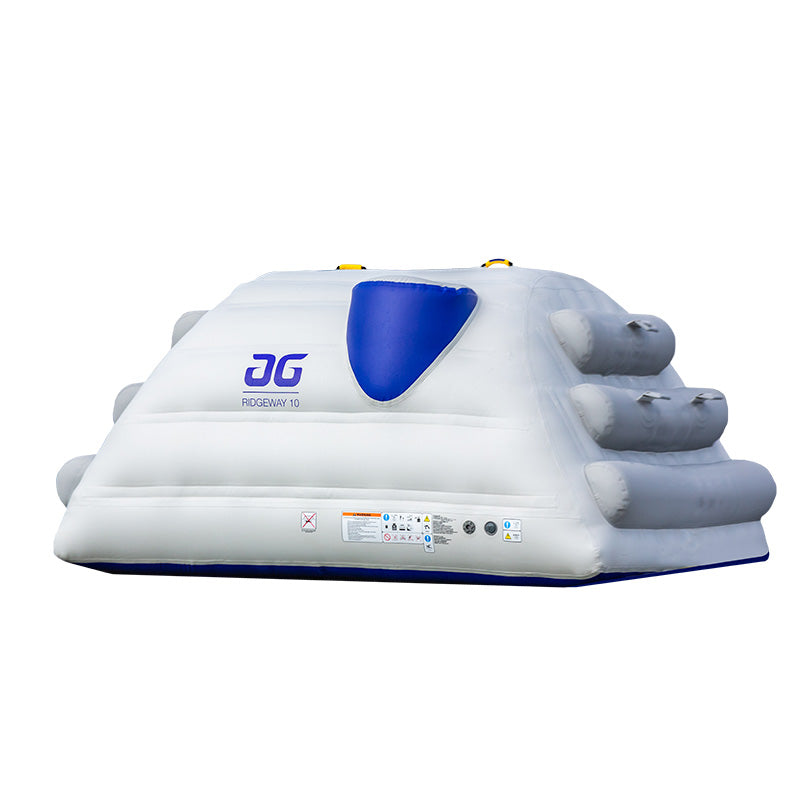

Ridgeway 10


Ridgeway 10 is a track obstacle that brings its own style of climbing, jumping and balance to the 10-foot track footprint. A quick scramble up and over will get the job done, but once on top, the whimsical stump jumping platforms beg to be bounced, making this one of the most ‘session-able’ 10-foot features in the range. Used to promote continuous play as part of an aquapark track run, Ridgeway 10 connects to other Aquaglide features on 2 sides using the Interlock D-Ring system.

Click button below for more product info


Best For

Climbing, playing, jumping, balance in a 10-foot track feature.


2 Adults / 2 Children


3-year limited against any manufacturing defects.


10’-0” L (305 cm) x 8’-0” W (244 cm) x 4’-11” H (150 cm).

Min Water Depth

5’4” (1.65 m)

Not Included

Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump.

More Specs

Key Tech Features

  • Double I-Beam – Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
  • Tubular – Integrates welded structural tube construction with 3-layer seams.
  • Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
  • Tritex Cx3– Uniquely textured version of our Duratex material adding grip and cooling attributes.
  • Interlock 5 – 2 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
  • Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.
  • PRV – Pressure relief valve to help protect against catastrophic over-inflation.

Key User Activities

  • Climb – Two integrated novice climbing lines allow users to climb or descend.
  • Jump – Two dedicated stump jumping stations add to the excitement.
  • Bounce – Offers a bounce element to keep things lively.
  • Balance – Includes a challenging balance element to keep users on their toes.
  • Obstacle – Presents an obstacle challenge which adds to the fun.

Technical Specifications

  • Max Weight: 400 lb. (181 kg) max weight.
  • Capacity: 2 Adults / 2 Children
  • Weight: 174.20 lb. 79 kg)
  • Material: 0.90 mm / 31 oz Cx3 Duratex and Tritex
  • Dimensions: 10’-0” L (305 cm) x 8’-0” W (244 cm) x 4’-11” H (150 cm).
  • Minimum Required Water Depth: 5’4” (1.65 m)
  • Minimum Distance from Shore: 10’ (3.0 m)
  • Minimum Required Total Anchor Weight: 4,400 lb. (2,000 kg)
  • Anchor Rings: 4
  • Accessory Attachment D-rings: 5 each on 2 ends.

Product Notes

  • Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
  • The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
