Jungle Jim

$3,699.99

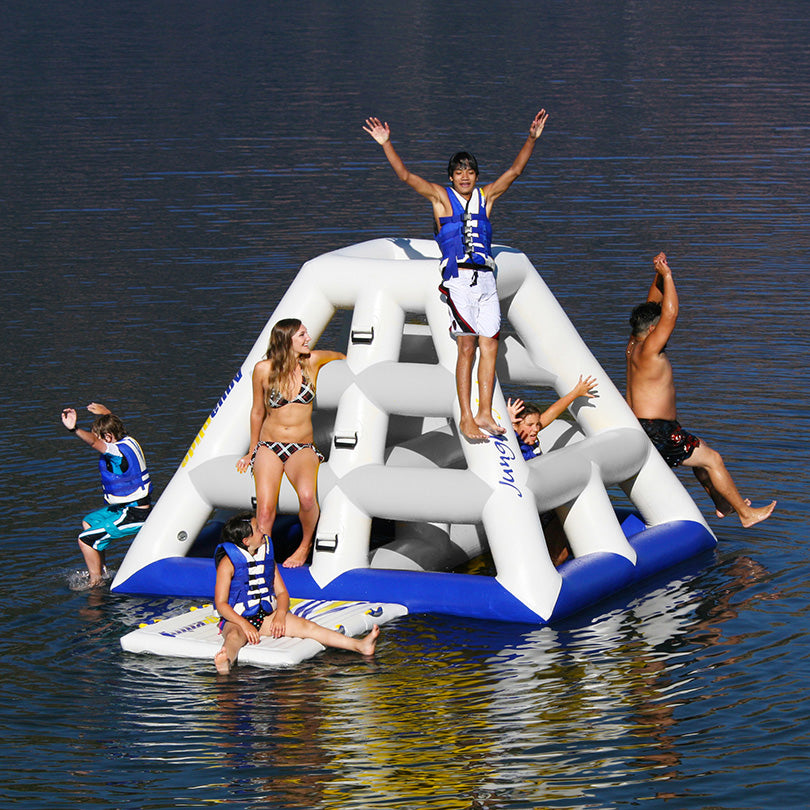

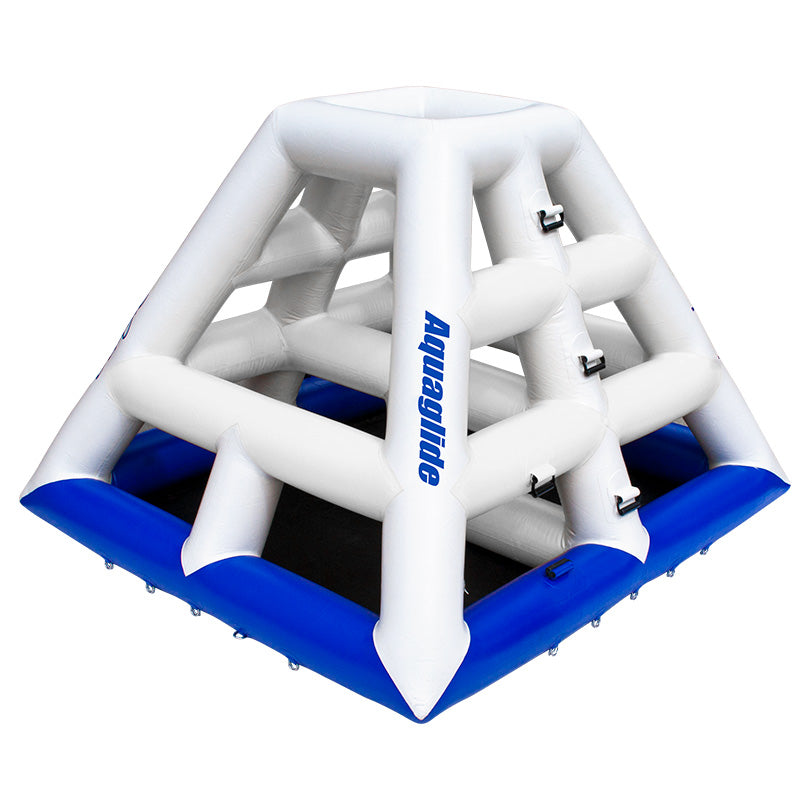

The Jungle Jim is a stable pyramid structure that features multiple options for climbing, sliding, jumping, and more. The climbing walls on this feature angle inward for convenience and stability, while an interior splash zone with soaker mesh floor provides secondary play options and a place to rest. Use the Jungle Jim as a standalone focal point, or connect it to other Aquaglide Aquapark features using the D-Ring Interloc system.

Click button below for more product info

Features

Best For

Climbing, sliding, jumping, and resting.

Capacity

4 Adults / 4 Children

Warranty

3-year limited against any manufacturing defects.

Dimensions

10’1” L (308 cm) x 10’2” W (311 cm) x 6’9” H (206 cm)

Box Dimensions

L 34″ x W 29.5″ x H 15.7″ (L 87cm x W 75cm x H 40cm)

Min Water Depth

6’4″ (1,94m)

Includes

Jungle Jim and repair kit.

Not Included

Anchor weights, mooring lines, bridles, Vario-Lock™ straps, and inflation pump.

More Specs

Key Tech Features

  • Tubular – Welded structural tube construction with 3-layer seams.
  • Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance.
  • Interlock 5 – 4 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
  • Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.

Key User Activities

  • Climb – Multiple interior and exterior climbing routes.
  • Jump – Numerous jump areas add to the excitement.
  • Cave – Adds interest with an integrated cave feature and interior spaces.
  • Splash – Mesh floor provides cooling and excitement.
  • Meridian Mesh – Uniquely configured to reduce cleaning requirements.
  • Obstacle – Presents an obstacle challenge which adds to the fun.

Technical Specifications

  • Max Weight – 800 lb. (363 kg) max weight.
  • Material – 0.90 mm / 31 oz Cx3
  • Minimum Distance from Shore – 15’ (4,5 m)
  • Minimum Required Total Anchor Weight – 1,100 lb. (500 kg)
  • Anchor Rings – 4, or 2 with 2-way bridles.
  • Accessory Attachment D-rings – 5 each on all 4 sides.

Product Notes

  • Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
  • If utilizing as a standalone piece, this item requires a boarding platform (not included) such as Swimstep XL, Swimstep 5×5, Speedway 10, Speedway 20, or Splashmat.
  • The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
