Springway 20
Springway 20
Springway 20
Out of stock

Springway 20

Springway 20

Call 855-502-2782 for Pricing

GET IN TOUCH FOR PRICING

enquiries@hutchwilco.co.nz

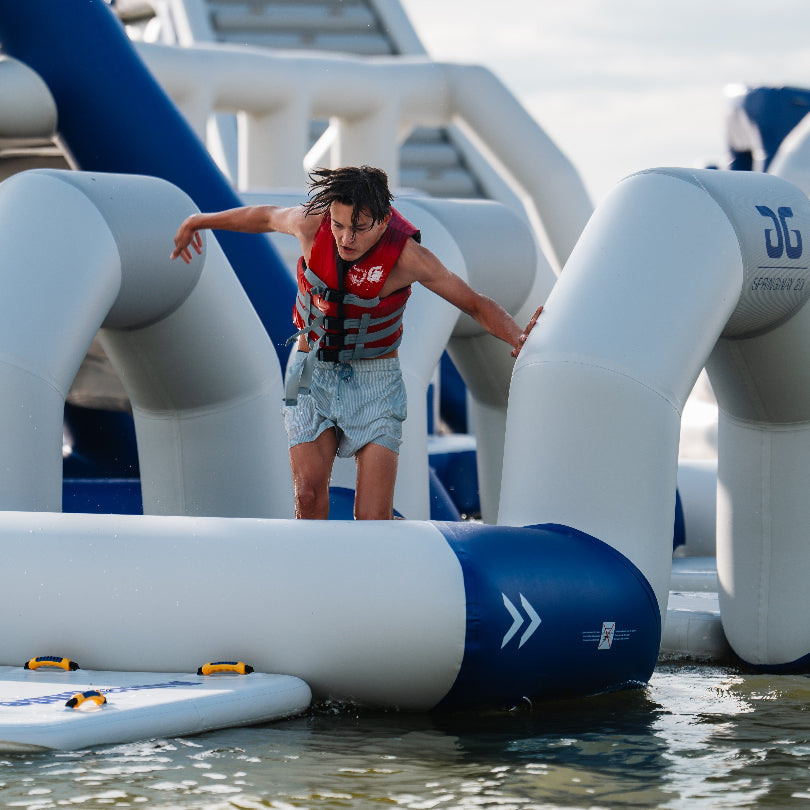

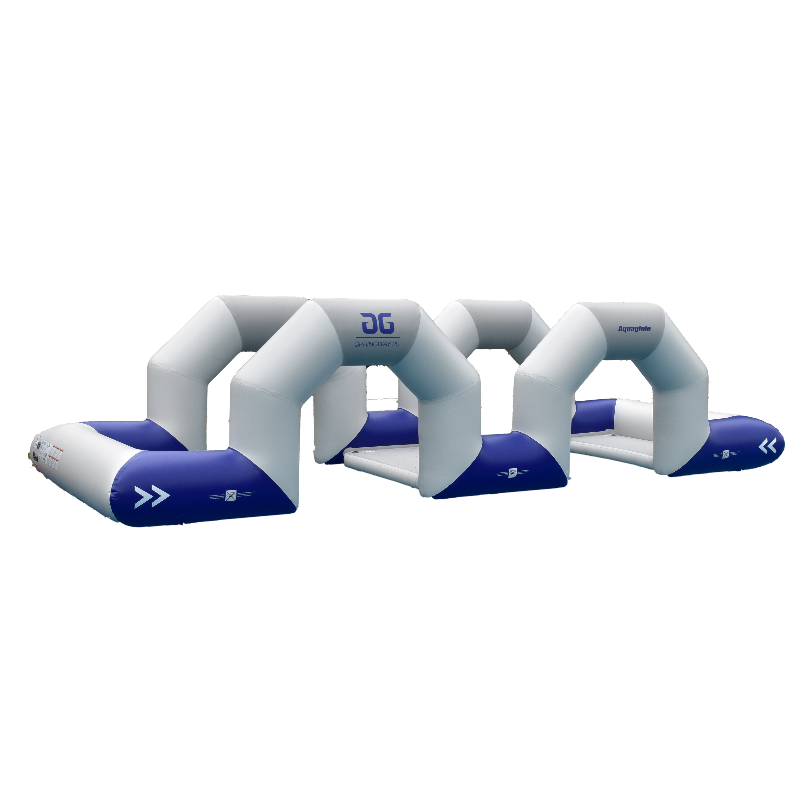

The Springway 20 turns momentum into adrenaline with a jump that demands total commitment. Featuring a gap wide enough to make even confident users pause at the edge, it tests timing and courage as participants leap to clear the open water between platforms. The inviting arch design dares challengers to fly across, delivering pure excitement with every landing. Integrated seamlessly into any track run using Aquaglide’s Interlock system, the Springway Series brings three options to any aquapark configuration.

Features

  • Best For

    Running, leaping, ingress/egress for enclosed aquapark rings.

  • Capacity

    3 Adults / 3 Children

  • Warranty

    3-year limited against any manufacturing defects.

  • Dimensions

    20.0 ft L (610 cm) × 8.2 ft W (250 cm) × 5.2 ft H (158 cm)

  • Min Water Depth

    5.5 ft (1.69 m)

  • Not Included

    Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump.

More Specs

Key Tech Features

  • Tubular – Welded structural tube construction with 3-layer seams.
  • Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
  • Tritex Cx3– Uniquely textured version of our Duratex material adding grip and cooling attributes.
  • Interlock 5 – 3 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
  • Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.
  • PRV – Pressure relief valves to help protect against catastrophic over-inflation.
  • TRiB CG – Integrated solar powered air pressure gauges in main chambers.

Key User Activities

  • Leap– Presents an open gap that adds variety and excitement to the track.
  • Run – Encourages users to move quickly through the feature.
  • Obstacle – Presents an obstacle challenge which adds to the fun.

Technical Specifications

  • Max Weight: 600 lb (272 kg)
  • Capacity: 3 Adults / 3 Children
  • Weight: 163.8 lb (74.3 kg)
  • Material:0.90 mm / 31 oz Cx3 Duratex and Tritex
  • Dimensions: 20.0 ft L × 8.2 ft W × 5.2 ft H (610 × 250 × 158 cm)
  • Minimum Required Water Depth: 5.5 ft (1.69 m)
  • Minimum Distance from Shore: 10 ft (3.0 m)
  • Minimum Required Total Anchor Weight: 1250 lb (500 kg)
  • Anchor Rings: 5
  • Accessory Attachment D-rings: 5 rings on two sides

Product Notes

  • Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
  • The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
