Pathback
Out of stock

Pathback

Pathback

Call 855-502-2782 for Pricing

GET IN TOUCH FOR PRICING

enquiries@hutchwilco.co.nz

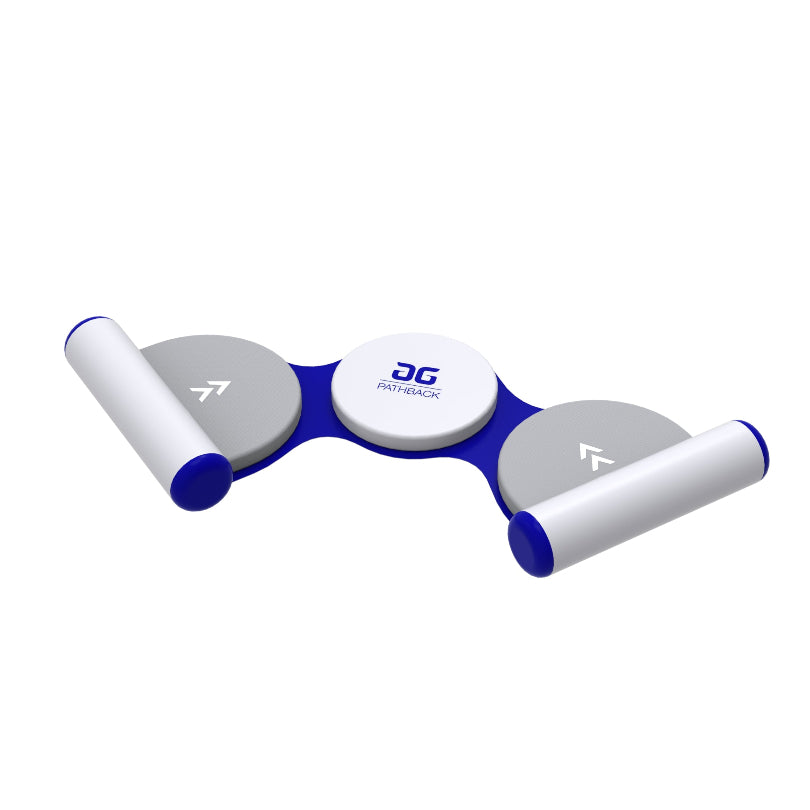

The Pathback is a dynamic balance feature that challenges users to navigate across a series of rounded stepping platforms and balance bars. Users can choose their own path across the feature, testing their balance, coordination, and agility as they move from platform to platform. The Pathback is designed as a connecting feature for Aquaglide Ring Series Aquaparks and connects on two sides using Vario straps.

Features

  • Best For

    Balance and coordination, transferring to other features.

  • Capacity

    3 Adults / 3 Children

  • Warranty

    3-year limited against any manufacturing defects.

  • Dimensions

    12.7 ft L (387 cm) × 12.4 ft W (378 cm) × 1.6 ft H (48 cm)

  • Min Water Depth

    3.7 ft (1.14 m)

  • Not Included

    Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump.

More Specs

Key Tech Features

  • Tubular – Integrates welded structural tube construction with 3-layer seams.
  • Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
  • Tritex Cx3– Uniquely textured version of our Duratex material adding grip and cooling attributes.
  • Interlock 5 – 3 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
  • Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.
  • PRV – Pressure relief valves to help protect against catastrophic over-inflation.
  • TRiB CG – Integrated solar powered air pressure gauges in main chambers.

Key User Activities

  • Obstacle – Presents a moving obstacle challenge that adds variety and excitement to the track.
  • Run – Encourages users to move quickly through the feature.
  • Balance -Offers a challenging balance element to keep users on their toes.

Technical Specifications

  • Max Weight: 600 lb (272 kg)
  • Capacity: 3 Adults / 3 Children
  • Weight: 424.5 lb (192.5 kg)
  • Material:0.90 mm / 31 oz Cx3 Duratex and Tritex
  • Dimensions: 20.0 ft L × 10.0 ft W × 10.6 ft H (610 × 305 × 322 cm)
  • Minimum Required Water Depth: 3.4 ft (1.05 m)
  • Minimum Distance from Shore: 10 ft (3.0 m)
  • Minimum Required Total Anchor Weight: 750 lb (300 kg)
  • Anchor Rings: 3
  • Accessory Attachment D-rings: 5 rings on two sides

Product Notes

  • Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
  • The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
